Dacen F5 UV Cylinder Printer for Bottles, Tumblers & Special-Shaped Products

Send Inquiry
Dacen F5 UV Cylinder Printer for Bottles, Tumblers & Special-Shaped Products
Details
The Dacen F5 combines a Toshiba CF3 printhead, 3.5 pL ink droplets, automatic profile scanning, adjustable rotary fixtures, and CMYK + White + Varnish printing for bottles, tumblers, cups, cans, and other customized cylindrical products. Model:F5
Color: CMYK W V
Print Diameter: 45mm to 125 mm
Print Length:30mm to 270mm
Machine size:1990*685*1850mm
Machine weight:450KG
Print mode:Color white varnish
Category
Cylinder Printer
Share to
Description

High-Speed UV Cylinder Printer for Bottles & Tumblers







 UV Cylinder Printer



F5 UV Cylinder Printer

Industrial 360° rotary UV printing engineered for cylindrical, tapered, and complex surface geometries. The Dacen F5 pairs Toshiba CF3 internal-circulation printheads with intelligent profile scanning and high-drop jetting-delivering precise CMYK+ LCLM + White + Varnish output on drinkware, cosmetic containers, and industrial packaging.

Toshiba CF3
Industrial Printhead
3.5 pL
Minimum Ink Droplet
Up to 20 mm
High-Drop Jetting
45–125 mm
Print Length
30–270 mm
Print Length



Request Information



Cylinder UV Printer​ Video

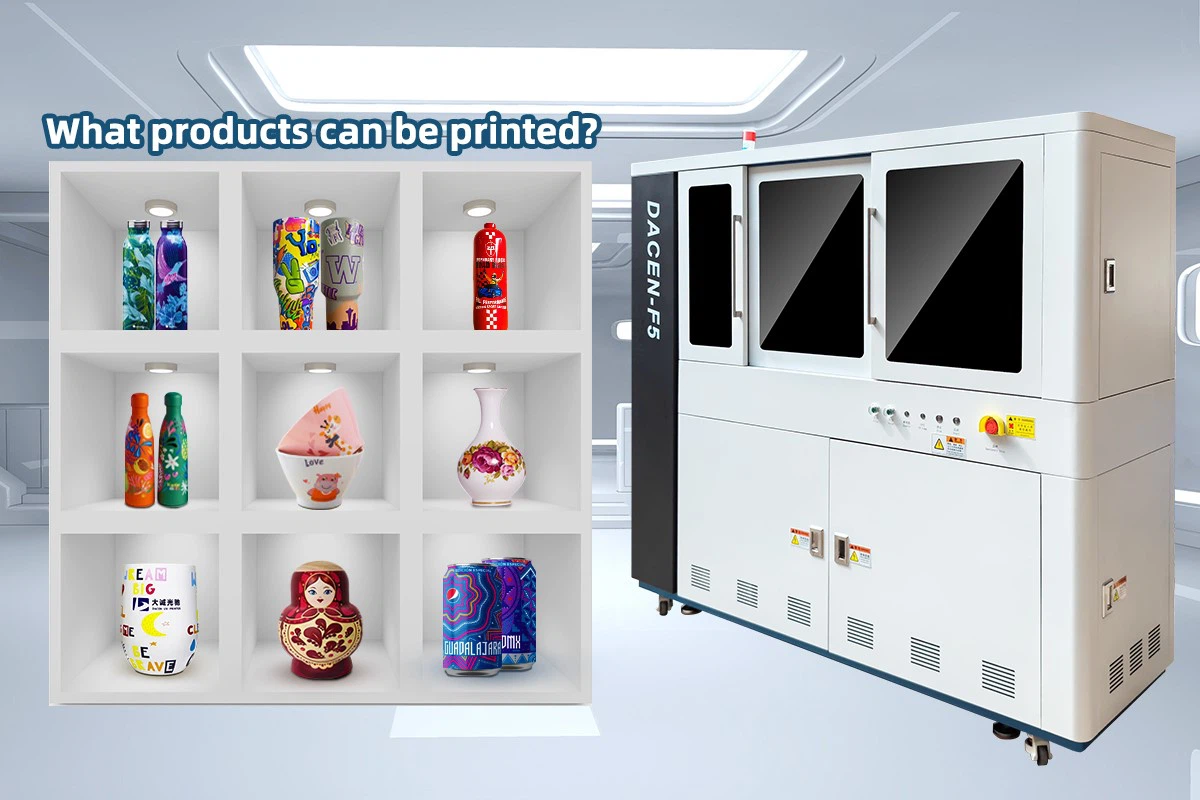

What Can the F5 Print?





F5 is an extremelv fast rotary UV printer completely built for direct printing on cylindrical and tumbler objectssuch as bottles, cups, thermos and cans.It is a printing machine specially developed for the printing of cylindrical products. It can print almost any cylindrical or conical product visible on the market, such as bottles, cups, thermos flasks, wine bottles, Christmas balls and cans, for a wide range of applications.
F5 UV Printer techical parameters
Products name Cylinder UV Printer Products model F5
Products diamete 45mm-125mm Printing length 30mm-270mm
Printhead Toshiba CF3 Printing Speed As fast as 20s per pcs
High precision 600*1800DPI Ink color K,C,M,Y,W,V
Taper 0-5degrees Curing system LED UV lamp
Printing mode Color white varnish Printhead quantity 1-5pcs
Machine dimension 1990*685*1850MM Machine weight 450KG
Power 50HZ AC220/110±>10A Ground wire Operation software RIPrint
Data interface Gigabit Enternet Image format TIFF,JPG,EPS,PDF,PNG,AI,PSD
Printing Method 360 degrees rotary printing Ink drop 3.5PL
Certification CE / ROHS / SGS Work Temperature 20℃-30℃
Work Humidity 30% - 60% Application Cylinder, Conical, Special shape





Sample Display





The F5 UV Rotary Printer has a wide range of applications and can be used to print on various cylindrical or conical products such as wine bottles, thermos flasks, goblets, sleeves, cans, conical cups, shaped cups and so on.Below are some sample examples.
 Travel Mugs

Water Bottles & Thermos Flasks

Edge-to-edge printing on straight-wall and tapered bottles without noticeable seam overlap.

Thermos Flasks

Tumblers & Travel Mugs

Seamless 360° full-wrap artwork, personalized patterns, and high-durability branding on stainless steel and coated drinkware.

Shaped Drinkware

Cups & Shaped Drinkware

Adapts to cups with varying top-to-bottom diameters, maintaining image density across shifting surface distances.

Packaging Bottles

Cosmetic & Packaging Bottles

High-resolution text, barcodes, and decorative graphics directly onto glass, PET, and aluminum containers.

Cans Containers

Cans & Metal Containers

Cost-effective on-demand decoration for craft beverage cans, promotional tins, and specialized packaging runs.

Shaped Products

Selected Special-Shaped Products

Surface profile scanning and high-drop ink dispersion open possibilities for non-standard geometric objects.



Have a stepped, curved, or irregular product?
Send us your container dimensions, cross-section drawings, and substrate details. Our application engineers will calculate fixture clearance, surface curvature limits, and jetting paths before you make an equipment commitment.



Send My Product for Engineering Evaluation





Key Features of

Cylinder UV Printer​






Core capabilities designed to deliver high-precision rotary printing, wide geometry adaptability, and industrial-grade output.
Industrial Toshiba CF3 Printhead
Industrial Toshiba CF3 Printhead



Stable ink circulation for continuous industrial printing.
The Toshiba CF3 industrial printhead features internal ink circulation across all channels. By maintaining continuous micro-flow directly behind the nozzles, the system eliminates pigment settling, purges micro-air bubbles, and ensures uniform ink density during long production shifts.

High-Drop Fine Printing



Precise ink placement across surface height variations up to 20 mm.
With native 3.5 pL micro-droplets and optimized firing velocity, the F5 maintains droplet trajectory over extended throw distances. This allows sharp text, crisp vector edges, and smooth gradients on stepped tumblers, contoured drinkware, and selected irregular profiles without overspray or edge burrs.
High-Drop Fine Printing
Eight-Color Printing Configuration

Eight-Color Printing Configuration



Expanded color gamut with multi-layer white and varnish capabilities.
Supports up to five printheads configured for CMYK + LC + LM + White + Varnish. This setup enables photographic skin tones and smooth color transitions, high-opacity white base layers on dark substrates, and selective gloss or embossed tactile finishes-all synchronized in a single print cycle.

Automatic Profile Scanning



Automated setup for cylindrical, conical, and contoured surfaces.
Standard cylindrical and conical runs configure quickly by entering basic dimensions (diameter and length) in the control software. For products with variable diameters or custom curves, an integrated optical sensor scans the surface profile and generates precise contour data before jetting begins.
Automatic Profile Scanning



UV Light Leakage Protection

UV Light Leakage Protection



Active sensor detection to safeguard printhead nozzle plates.
Integrated optical sensors continuously monitor the print zone for stray UV reflections. If misdirected UV light is detected near the carriage assembly, the system instantly shuts down the curing lamps to prevent ink from curing on the nozzle face and causing blockages.

Automatic Height Detection & Anti-Collision System



Physical and optical fail-safes to protect critical motion assemblies.
Infrared sensors verify safe clearance heights prior to carriage motion. During operation, mechanical and electronic anti-collision stops trigger an immediate halt and audible alarm if unexpected product elevation or fixture misalignment is detected.
Anti-Collision System

F5 Engineering & Production Systems


UV Curing
01

UV Curing & Optical Protection

38 Zoned LEDs: Independent control regulates localized UV intensity and minimizes thermal load on heat-sensitive substrates.
Millisecond Auto Shut-Off: Detects stray reflections and cuts lamp power instantly to prevent ink from curing on nozzle plates.
02

Height Calibration & Anti-Collision

Infrared Auto-Probing: Measures container apex height before carriage travel to secure the optimal jetting gap.
Physical Interlock Halt: Instantly freezes drive motors upon clearance anomalies, eliminating catastrophic printhead strikes.
Anti-Collision
Mist Evacuation
03

Mist Evacuation & Waste Containment

Negative-Pressure Suction: Captures airborne ink mist at the rotary zone to shield guide rails, encoders, and print output.
Isolated Waste Purge: Collects flash-spray waste in a dedicated sealed chamber, ensuring a clean machine interior and simple maintenance.
04

Multi-Axis Adjustable Fixture

0°–5° Taper Tilt: True parallel alignment on tapered walls.
Positive-Lock Clamp: Zero slip for seamless 360° joints.
Flexible Sizing: Fast changeover for varnothing 45–125 mm, 30–270 mm length.
Multi-Axis Adjustable Fixture

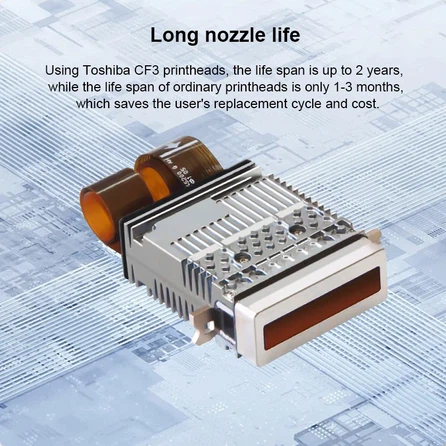

Why We Choose the Toshiba CF3 Printhead





9aed586e-118f-4e22-8f8d-0b4a83520c73

The Technical Backbone of the F5 Printing System





300 npi/Row Native Nozzle Density

High mechanical resolution delivers clean edges on fine micro-text, vector logos, and intricate industrial labels.

3.5 pL Minimum Droplet Volume

Delivers smooth tonal gradations and photo-realistic imagery without noticeable grain in highlight areas.

All-Channel Internal Ink Circulation

Constant fluid motion directly through the nozzle cavity purges suspended air bubbles and prevents high-density pigments (such as titanium dioxide white) from settling.

Thermal & Jetting Stability

Built for prolonged continuous runs, the CF3 architecture maintains uniform meniscus pressure and nozzle discharge velocity under industrial room temperatures.

Optimized High-Distance Jetting

Combines sustained droplet momentum with straight trajectory flight, crucial for bridging large gaps on conical or curved walls.



Why Choose Us


About Dacen

Dacen, located in Longhua, Shenzhen, is a high-tech enterprise specializing in inkjet equipment. With an area of about 7,000㎡, we have Independent Intellectual Property Rights and focus on research, development, production, and sales.



We offer personalized customization and industrial production solutions tailored to the specific needs of various industries. Additionally, Dacen provides investment planning, product solutions, machine maintenance, free maintenance, software upgrades, accessories services, and more to make your investment more convenient and profitable.

Dacen
77c1eb81-f921-4ee0-a0ce-3e0b59c2c863 ed460af1-5e66-4eb1-8a34-88c9d673ecae







high quality

Excellent quality widely praised by customers.

advanced equipment

The company independently develops and produces independently. Keep our printers at the forefront of the industry.

professional team

Professional technical engineers online support, response within 12 hours

global shipping

Customers are located in more than 30 countries around the world. Worry-free logistics

After-Sales Service & Technical Support





Keeping Your UV Printing Line Running at Peak Reliability

From shop-floor deployment and calibration to routine maintenance and rapid troubleshooting, Dacen's engineering team provides the technical foundation you need to protect equipment uptime, ensure print quality.

One-year Warranty

Comprehensive coverage for core mechanical and electronic components to ensure risk-free commissioning and operation.

Technical Support Within 1 Hour

Fast online assistance for setup, operation, printing and troubleshooting.

Installation & Training

Installation, calibration, test printing and operator training.

See Dacen in Action at Industry Exhibitions





EXHIBITIONS

14+

years



We have been working in the industry since 2012

30+

COUNTRIES



Customers in more than 30 countries.Our machines can be found in factories in Europe, America, Asia and Africa.

80+

EXHIBITIONS



At the exhibitions, we made many friends in the printing industry. We have established long-lasting friendship and cooperation.



Certificates



Certified for Global Industrial Standards: CE, ISO 9001, and Independent Proprietary Patents.



Certificates



FAQ



What materials can the F5 print on?

+

-

The F5 can print on compatible glass, coated metal, stainless steel, aluminum, plastic, ceramic and other rigid materials.

Ink adhesion depends on the material, surface coating and intended use. Some substrates may require cleaning, flame treatment, plasma treatment or a suitable primer. We recommend sending product samples to Dacen for adhesion testing before production.

Can it print on tapered cups and bottles?

+

-

Yes. The F5 supports cylindrical products and tapered products with angles from 0 to 5 degrees.

Because tapered containers vary in shape, customers should provide the diameter of both ends, the product length and a photograph or drawing. Dacen can then evaluate the fixture and printing setup.

Does the ink dry immediately after printing?

+

-

The F5 uses LED UV lamps to cure UV ink during the printing process. The printed surface is generally ready for handling after proper curing.



Final adhesion and resistance depend on the substrate, pretreatment, ink configuration and curing settings. Some applications may require additional testing or post-curing.

How durable are the printed graphics?

+

-

With the correct ink, pretreatment and curing settings, UV-printed graphics can provide good color, adhesion and resistance for many decorative and commercial applications.



Durability varies according to the material and usage environment. If the finished product must withstand washing, alcohol, chemicals, abrasion, outdoor exposure or high temperatures, customers should specify these requirements before testing.

Does every product require a custom fixture?

+

-

Products with similar diameters and shapes may be compatible with an adjustable or shared fixture. Products with unusual bottoms, necks, tapers or surface features may require a custom fixture.

Customers should provide product dimensions, drawings and photographs so Dacen can confirm fixture compatibility.

What makes the Toshiba CF3 printhead better for white ink and varnish than standard printheads?

+

-

The Toshiba CF3 incorporates full internal ink circulation directly inside the nozzle chamber. This continuously sweeps away air bubbles and keeps heavy white pigment particles suspended, preventing nozzle clogging and extending printhead lifespan to 2–3 years while delivering crisp 600 × 1800 DPI edges.

Why does the UV LED lamp have 38 individually controlled beads?

+

-

Controlling each of the 38 LED lamp beads independently enables localized light-off curing. During multi-layer printing (Color + White + Varnish), selective UV exposure prevents premature curing of the clear varnish layer-resulting in a smoother, higher-gloss 3D finish and faster overall cycle times.

How does the DACEN-F5 print on irregular or non-cylindrical shapes without image distortion?

+

-

The standard rotary fixture supports cylindrical and conical products with diameters from 45 mm to 125 mm, printable lengths from 30 mm to 270 mm, and taper angles from 0° to 5°.

What bottle sizes and taper angles can the DACEN-F5 accommodate?

+

-

The standard rotary fixture supports cylindrical and conical products with diameters from 45 mm to 125 mm, printable lengths from 30 mm to 270 mm, and taper angles from 0° to 5°.
